CNC Plasma Cutting Machine

Product categories of CNC Plasma Cutting Machine, we are specialized manufacturers from China, CNC Plasma Cutting Machine, CNC Plasma Cutter suppliers/factory, wholesale high-quality products of CNC Plasma Cutting Machinery R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!

China CNC Plasma Cutting Machine Suppliers

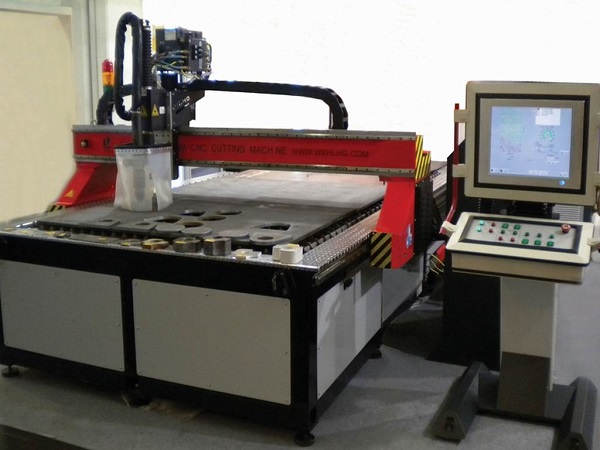

Fume &dust extracted by air exhauster while plasma cutting. This system has one ventilation outtake and one gliding extraction intake, the extraction intake moves along with the gantry, the sealed rubber strip at the head of ventliation outtake, can makes a sealing function with the help of minus pressure generated by the fan.

pipe intersecting lines Cutting Machinery

Scope of application

The machine is a formed Cutting Equipment used for fully automatic incising intersecting lines with slope

on pipes and cutting pipe end, for example, one-time molding cutting intersecting lines

or opening holes on bearing steel pipes and gas and liquid transporting steel pipes by flame or plasma

with high precision and high efficiency. It can be widely used in oil drilling platform, shipbuilding industry,

chemical industry, industrial boiler and power station boiler, pressure vessel, electrical power transmission

tower, water conservancy, water supply, bridges, crane, construction and other industries.

Features of pipe intersecting lines cutting machinery

1.Self-developed 5-7 axis CNC system; Ac-servo control

2.3D graphical display, simulation function, simulate processing

3.Parametric programming of graphic database or special intersecting line software

4.online test or demonstration for steel pipe, real-time dynamic tracking compensation

5.Compensation function of cutting gap, thickness, ellipse, groove angle.

6.Nesting of pipe fittings, continuous cutting, long pipe separate into short slabs.

Model

CPC series(Blocking plate), FWPC series(Friction wheel)

Cutting diameter

50~1500 mm (customizable)

Cutting length

3000~12000m

mmcustomizable)

Cutting manner

flame/plasma is optional

Rotation driving

Blocking plate

(Friction wheel is optional)

Cutting thickness

flame 6~50mm

plasma 3~30mm

Length localization precision

0.3mm/2000mm

Groove angle

flame±60°/plasma±45°

Angle localization precision

Angular positioning precision

0.1~0.2°/360°

Cutting speed

50~6000mm/min

Auxiliary function

height detection,

pipe ellipticity modification

Rapid travel rate

≤12000mm/min

Controlling Axis

X,Y,Z,A,B,W+ detection

Programming method

Parametric programming of graphic database /Special programming software supporting
